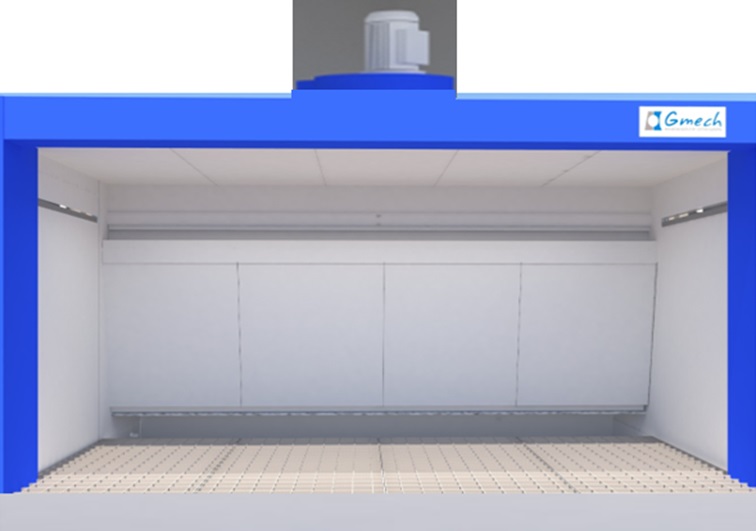

GMECH Single Curtain 3 Side Water Fall Spray Booth

GMECH Single Curtain 3 Side Water Fall Spray Booth

Size of the booth=4000x2500x2300 mm LxWxH

Back Side water Rinsing vertical wall : 4000x2300 mm( LxH)

Lateral water rinsing vertical wall1100x2300 mm – 2 nos

Total suction Capacity of the Blower (m3/hr): 14,000 m3/hrx1 No’s

Motor :4 KWx1 No’s, 3P ,400V, 50Hz

2hp submersible pump water rotation

Water Tank4000x2500mm LxW included

Note: Customer should dig the pit for Water tank

Gratings Size: 4000x1600X30mm

Load bar size: 30x5mm, pattern: W100

Cross bar pitch: 100mm

Load bar pitch: 41mm Twisted square bars

Water Tank included

Electrical control Panel-Schneider Components-Spark Proof

4’x2 Weatherproof Light fittings: 2 Nos

LSW-220 MX -Power-2x20W, IP65
