Rico Tilt Spindle Wood Shaping Machine With Sliding Table Mx5615A

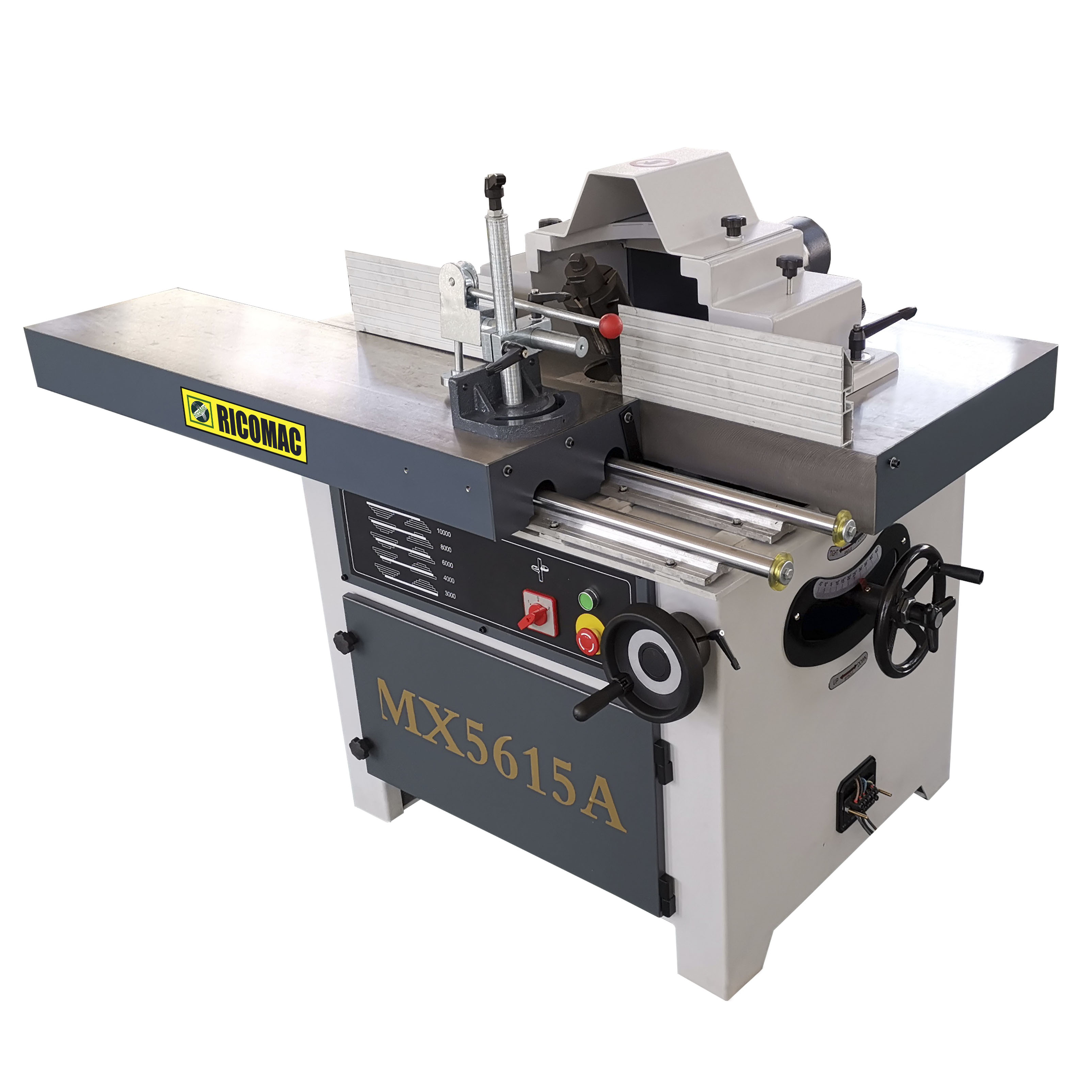

RICO Tilt spindle wood shaping machine with sliding table MX5615A

Product Description:

1.With overall grinding of the worktable surface,the woodworking milling machine ,with tiltable spindle MX5615A,features high precision

2.The machine has a desirable appearance and has the advantages of easy and safe operation and low noise.

3.The woodworking milling machine with tiltable spindle conducts two-time dynamic balancing operations for spindle assembly to ensure more stable operation of the machine under high speed.

4.Its machine body has aging treatment and precision processing for many times,and is made of low-temperature welding of high-quality steel plate.The machine can achieve sound precision retaining ability .

Technical specifications:

Max milling height 150mm

Spindle speed 3000/4000/6000/8000/10000rmin

Spindle diameter 35mm

Spindle lifting height 0-190mm

Model wheel external diameter 80mm

Max stroke of traveling table 800mm

Tilting angle of cutter arbor 0-45 degrees

Motor power 4kw

Fixed table size 1110*550mm

Traveling table size 1110*260mm

Overall dimensions 1135*1525*1140mm

Net weight 480kg
