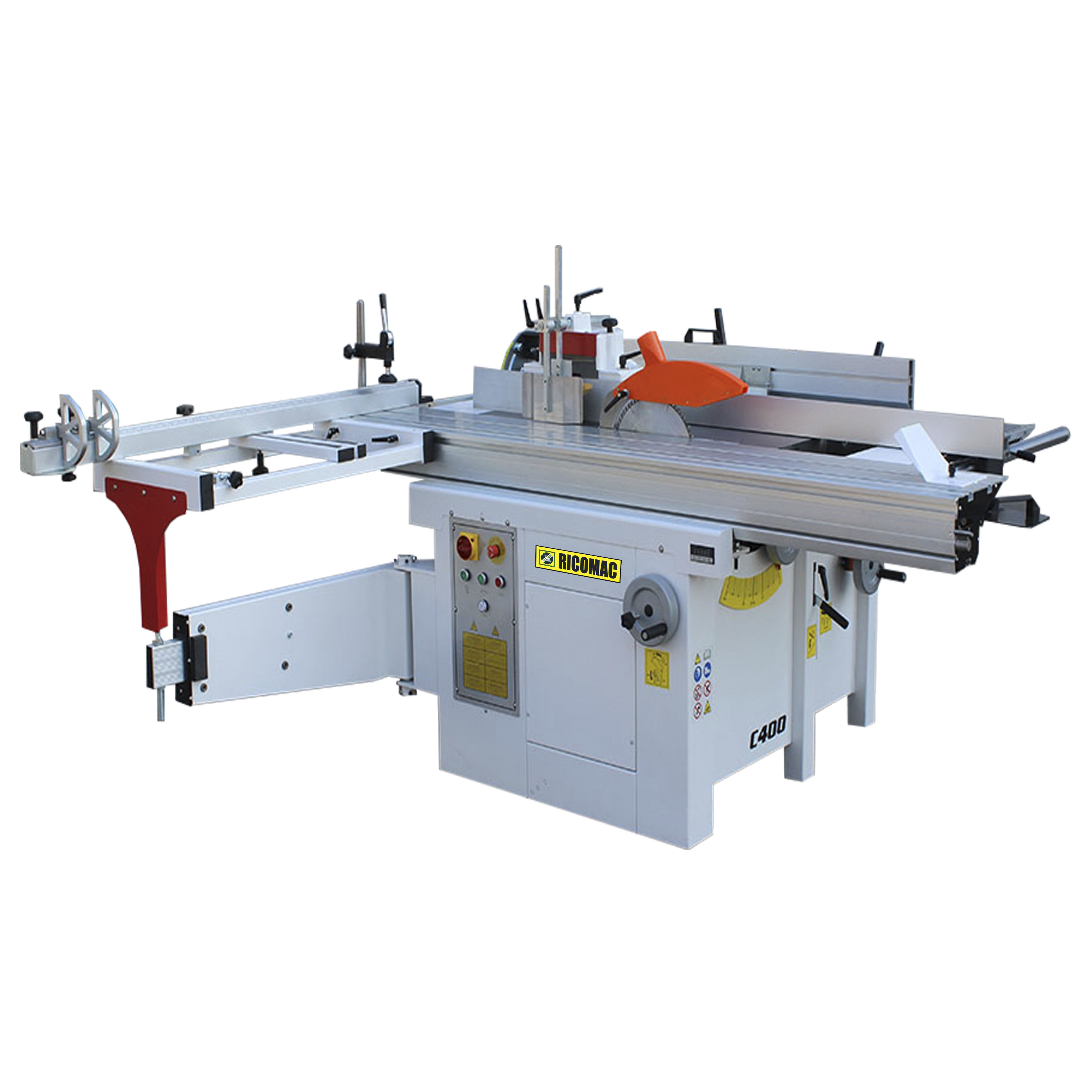

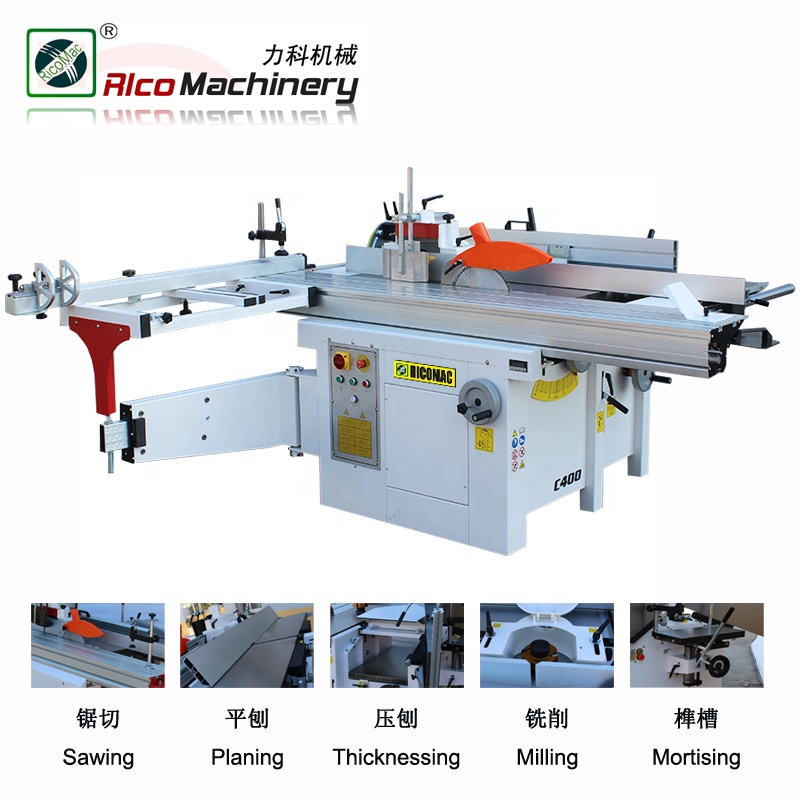

Rico Combination Wood Working Machine 400C

The C400 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own. Being a professional standard machine, the C400 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.

Planer

Working tables mm 400x1800

Cutterblock diameter mm 70

Cutterblock rotation speed r.p.m  5700 r.p.m

N. of knifes n° 3

Knifes dimensions mm  400x20x3

Max table adjustment mm 4

Thicknesser

Working table mm 400x760

Feed speed m/1'  7

Max. working height mm 220

Min. working height mm 4

Cutter block rotation speed r.p.m. 5700

Max. cutting depth mm 4,0

Circular saw

Working table mm 326x1112

Shaft rotation speed r.p.m.  4500

Blade diameter mm 300

Blade bore diameter mm 30

Cutting height 90° mm 100

Max. distance between blade and fence mm 730

Blade inclination 45°

Max cutting height 45°mm 75

Shaft rotation speed engraver r.p.m.  7000

Engraver blade diameter mm 90

Engraver blade bore diameter mm 22

Mortiser

Working table mm 250x500

Longitudinal stroke mm 205

Trasversal stroke mm 95

Vertical stroke mm 90

Churck  mm 16

Churck rotation speed r.p.m.  5700

Shaper

Working tables mm 326x1112

Shaft rotation speeds r.p.m.  7000/4400/3100/2000

Standard shaft diameter mm 30

Spindle lenght mm 105

Shaft vertical stroke mm 115

Max. tool diameter mm 180

Max. tenoning depth mm 65

Tenoning carriage

Carriage dimensions mm 1800x315

Carriage stroke mm 1800/2200

Standard accessories

Standard Accessories

Table extensions with swinging arms mm 860x600

3 pcs. planing knives

 Planer guide

 Saw guide

 Bridge sefety hood on planer

 3-phase motor power HP - KW 4,0 -3,0

Weight  kg 645
